IRM Model 8010 8" x 10" 2-High Rolling Mill

描述

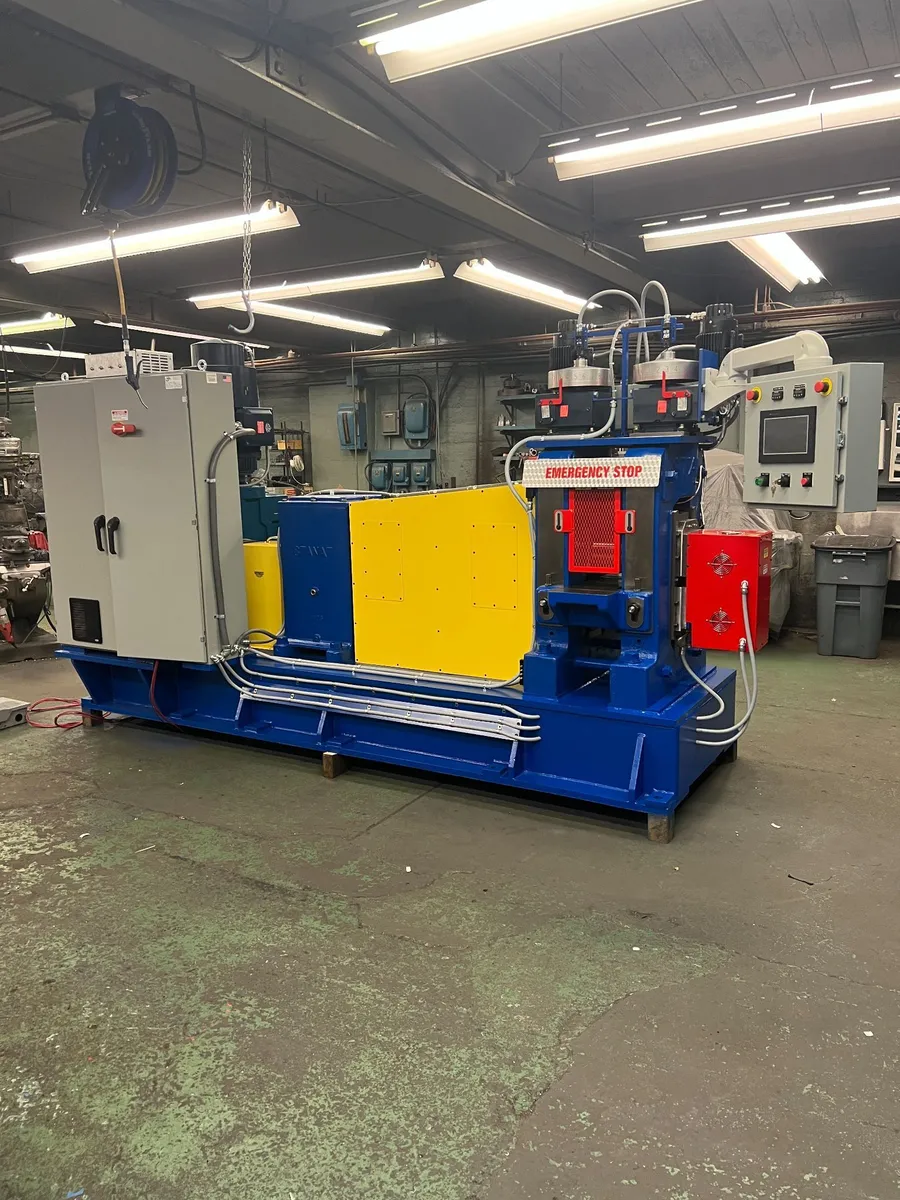

The IRM 8010 8″ × 10″ 2-High Laboratory Rolling Mill is a precision-engineered rolling solution designed specifically for research, development, and small-batch production environments. Built on a robust industrial platform with laboratory-grade control and flexibility, this mill delivers repeatable, high-accuracy reduction and deformation for metals and alloys under controlled conditions.

Note: All images shown are simulated renderings provided for reference and illustrative purposes only. Final machine configuration, layout, and components may vary based on customer requirements and engineering specifications.

Key Features & Capabilities

Precision Roll Geometry: 8″ (203 mm) diameter rolls with a 10″ (254 mm) effective working width provide an ideal balance of material contact and force distribution for laboratory-scale samples and pilot trials.

Advanced Roll Adjustment: Dual electro-mechanical screwdowns with VFD control and encoder feedback allow fine, repeatable roll gap adjustment—critical for experimental rolling schedules and metallurgical studies.

Power & Performance: Driven by a 40 HP inverter-duty AC gearmotor and designed for separating forces up to approximately 250,000 lbs, the IRM 8010 is capable of processing a wide range of ferrous and non-ferrous alloys.

Modern Drive & Controls: Variable-speed AC inverter control enables smooth, controlled rolling speeds suitable for research, process optimization, and material characterization work.

Safety & Laboratory Usability: Integrated safety guarding at nip points and entry/exit areas supports safe operation in laboratory and university environments while maintaining clear material flow.

Typical Applications

The IRM 8010 is well suited for:

Metallurgical and materials research

Process development and pass schedule optimization

Pilot-scale rolling trials

Alloy development and deformation studies

Academic, national laboratory, and industrial R&D environments

By combining industrial-grade mill construction with precise, research-focused controls, the IRM 8010 provides a reliable and adaptable platform for laboratories requiring accurate, repeatable rolling results.
