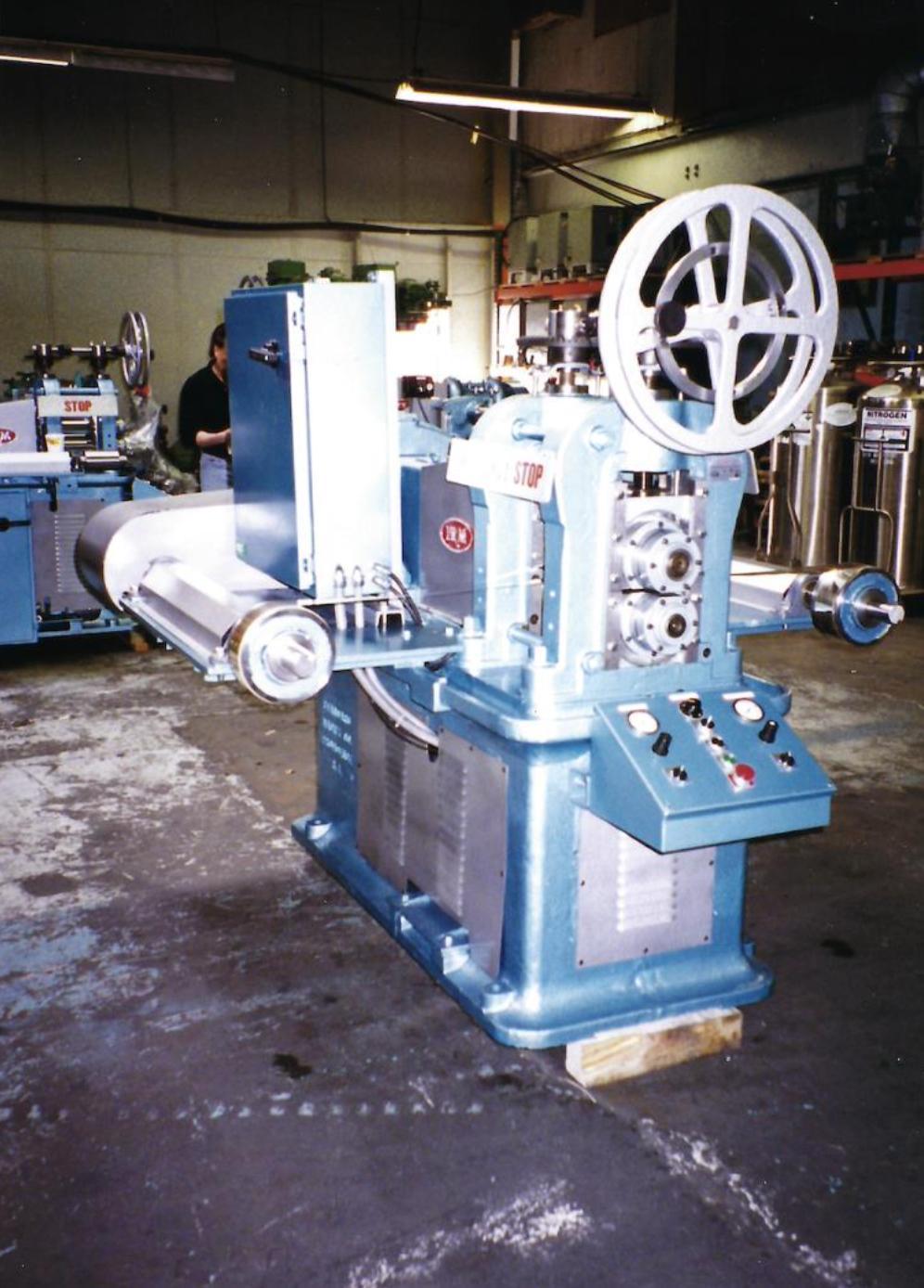

Standard Machinery 5" x 8" 2Hi Rolling Mill with Payoff and Recoiler

Model
5" x 8" 2HI Rolling Mill

Stock #
48

Condition
Not specified

Year

Location
Pawtucket, Rhode Island
United States

Specifications

ROLL DIAMETER 5 inches
ROLL WIDTH 8 inches
ROLL HARDNESS 60-62 Rockwell C
ROLL FINISH Satin 2RA
ROLL ADJUSTMENT Roll gap will be adjusted by two hand wheels. These wheels lock together for simultaneous roll gap adjustment or can split apart for very precision side to side adjustment.
MILL SEPARATING FORCE Approximately 100,000 lbs.
MILL POWER 10 HP 4-Speed Gearmotor
MILL VOLTAGE 480V
MILL PHASE 3 Phase
MILL CONTROLLER Variable Speed AC Inverter
MILL OPERATOR CONTROLS Will be centrally located.
MILL FUNCTIONS Stop, Start, Forward, Reverse, and Speed Pot.
MILL E-STOP BARS Will be installed on entry and exit of the mill.
MILL DIMENSIONS Approximately 72" L x 48" W x 72" H
MILL WEIGHT Approximately 5,000 lbs.
