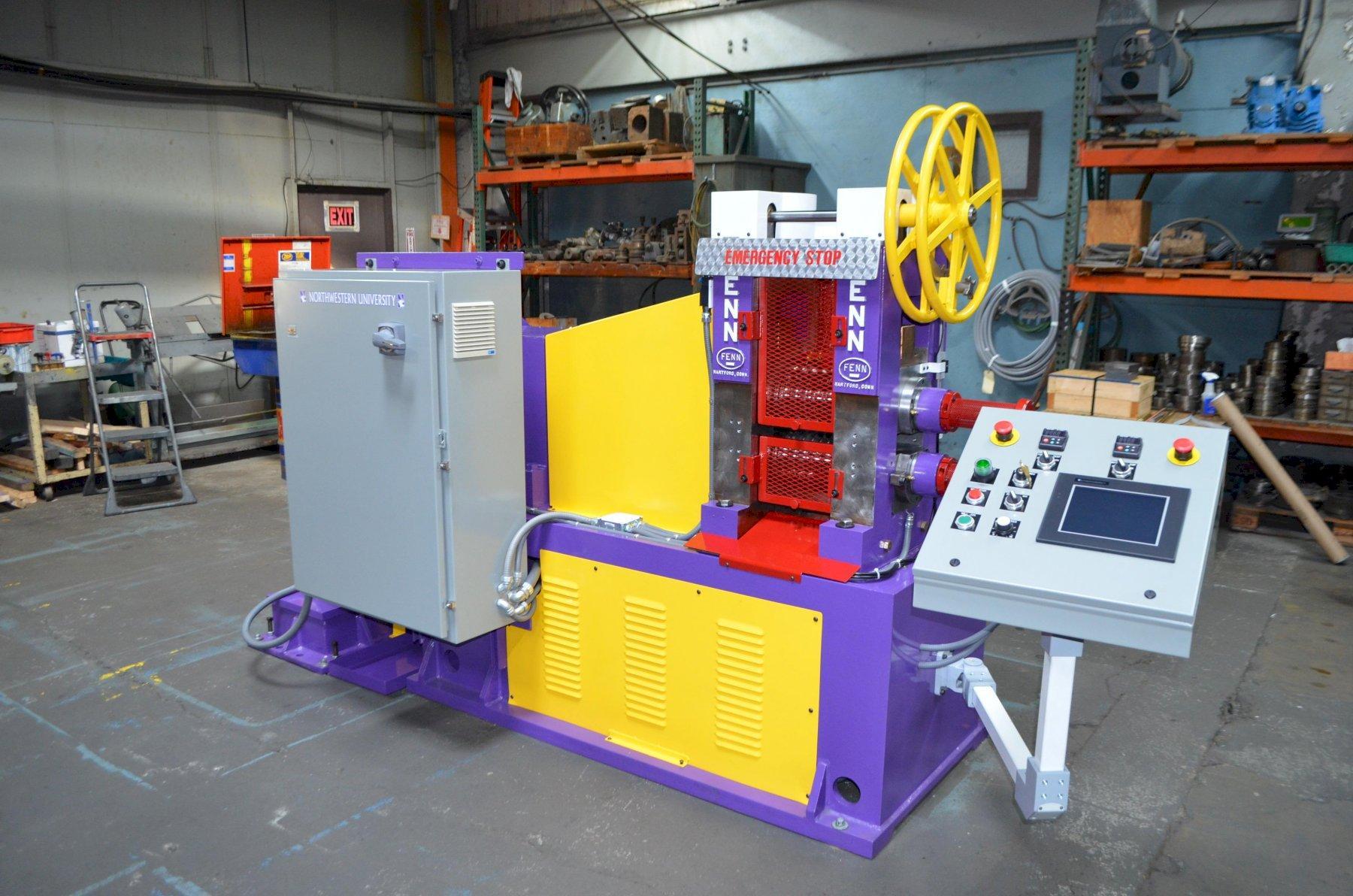

Fenn Model 051 5" x 8" 2Hi/4Hi Rolling Mill

Brand
FENN

Model
051

Stock #
12

Condition
Excellent

Year

Location
Pawtucket, Rhode Island
United States

Specifications

ROLL DIAMETER 5.000 inches
ROLL WIDTH 8.000 inches
ROLL MATERIAL 52100
ROLL HARDNESS APPROXIMATELY 60 - 62 ROCKWELL C
ROLL FINISH CUSTOMER CHOICE
ROLL ADJUSTMENT ROLL GAP WILL BE ADJUSTED BY TWO HAND WHEELS. THESE WHEELS LOCK TOGETHER FOR SIMULTANEOUS ROLL GAP ADJUSTMENT OR CAN SPLIT APART FOR VERY PRECISE SIDE TO SIDE ADJUSTMENT
MILL SEPARATING FORCE APPROXIMATELY 100,000 LBS
MILL PINION TWO HEAVY-DUTY HERRINGBONE GEARS DRIVE THE TWO ROLLS SIMULTANEOUSLY
MILL POWER 20 HP AC GEARMOTOR
MILL VOLTAGE CUSTOMER CHOICE
MILL PHASE THREE PHASE
MILL CONTROLLER VARIABLE SPEED AC INVERTER
MILL OPERATOR CONTROLS WILL BE CENTRALLY LOCATED
MILL FUNCTIONS START, STOP, FORWARD, REVERSE, SPEED POT, AND E-STOPS
MILL E-STOP BARS WILL BE LOCATED ON THE ENTRY AND EXIT OF THE MILL
MILL TABLES WILL BE LOCATED ON THE ENTRY AND EXIT OF THE MILL
MILL GUARDING ALL MOVING PARTS WILL BE GUARDED
MILL DIMENSIONS APPROXIMATELY 96" L X 36" W X 72" H
MILL WEIGHT APPROXIMATELY 6,000 LBS
