Equipment
Rolling Mills
Combination Rolling Mills (2-High / 4-High)
Stanat Model TA-215 0.875" x 4" x 6" 2-High / 4-High Reversing Rolling Mill with Coil Winders - IRM Factory Refurbished

Stanat Model TA-215 0.875" x 4" x 6" 2-High / 4-High Reversing Rolling Mill with Coil Winders - IRM Factory Refurbished

Have one to sell?
+1 401-722-7811
info@irminc.com
ConditionNew
1 available
Have one to sell?

Overview

Type:
Combination Rolling Mills (2-High / 4-High)
Manufacturer:
STANAT
Model:
TA-215
Condition:
New OEM Stock
Stock #:
114
Status:
For Sale
Country:
United States

Description

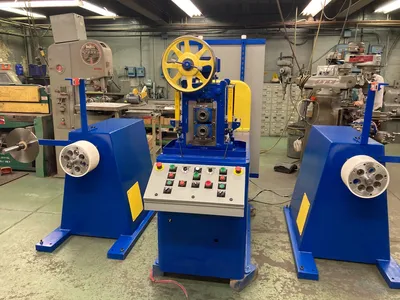

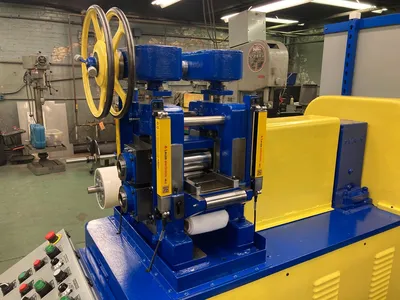

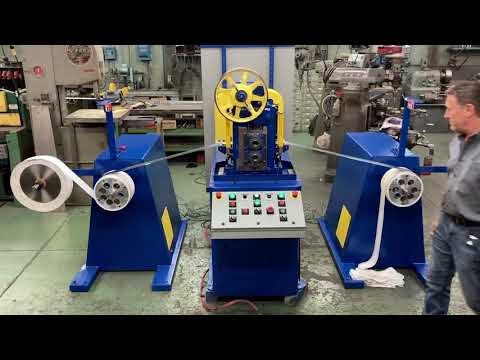

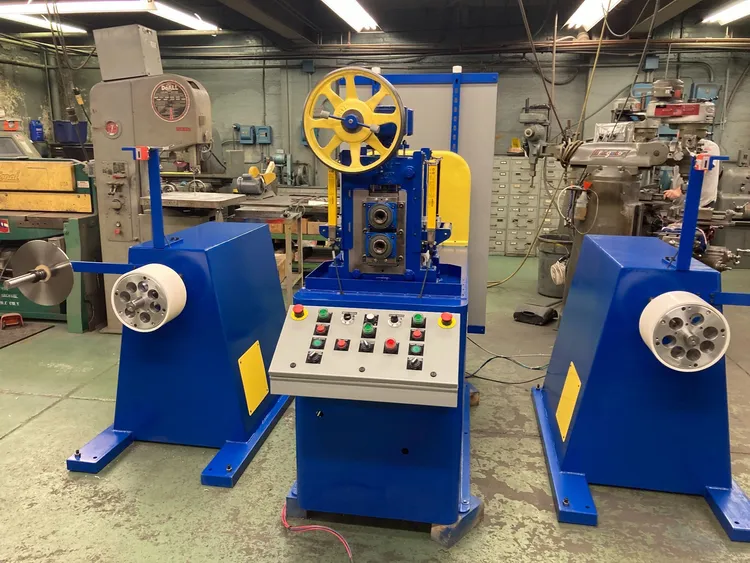

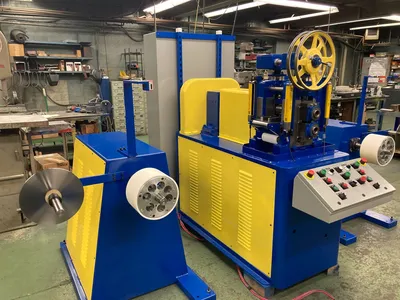

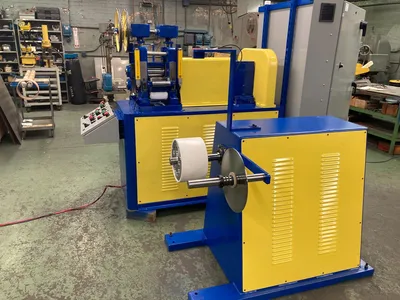

Introducing the Stanat TA-215 0.875" x 4" x 6" 2-High/4-High Reversing Rolling Mill, equipped with coil winders. This new combination mill is IRM factory refurbished, designed for superior performance and precision in demanding applications.

Work Roll Diameter0.875"22.225 mm
Work Roll Width6"152.4 mm
Backup Roll Diameter4"101.6 mm
Backup Roll Width6"152.4 mm
Roll FinishSatinSatin
Roll MaterialHigh Carbon Chromium Alloy SteelHigh Carbon Chromium Alloy Steel
Roll Gap AdjustmentDual handwheels can allow for simultaneous or independent roll gap adjustment.Dual handwheels can allow for simultaneous or independent roll gap adjustment.
Mill Power5 HP5 HP
Mill Separating ForceApproximately 50,000 LBSApproximately 50,000 LBS
Mill VoltageCustomer ChoiceCustomer Choice
Mill Phase3-Phase3-Phase
Mill ControlsNew Variable Speed AC InverterNew Variable Speed AC Inverter
Mill TablesTables will be installed on the entry and exit of the mill.Tables will be installed on the entry and exit of the mill.
Mill SafetyAll nip points will be guarded.All nip points will be guarded.
