Ruesch Model 177 6.5" x 24" Precision Ring Slitter with Tooling
Have one to sell?
ConditionUsed
1 available
$75,000.00 USD
RUESCH MODEL 177 6.5" X 24" PRECISION RING SLITTER WITH TOOLING

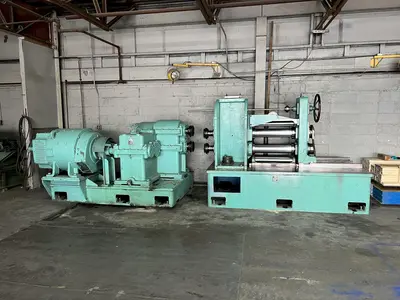

This Ruesch Model 177 precision ring slitter features approximately 6.5" diameter arbors, a 24" arbor width, and a 125 HP Reliance DC motor for industrial metal strip and coil slitting applications. Available from International Rolling Mills, the machine includes a separate drive assembly and an extensive assortment of slitting knives and spacers for configuring multiple strip widths.

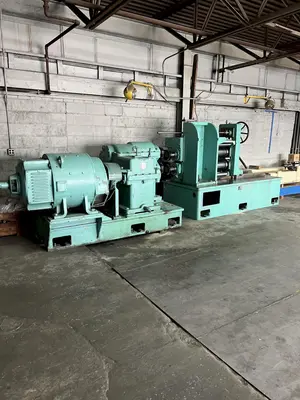

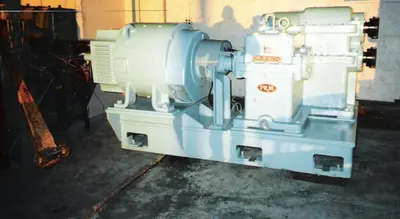

Heavy machine housings and a substantial base provide rigid support for the slitting arbors. A sliding outboard bearing housing provides access to the arbor ends for knife and spacer changes. The separate drive assembly incorporates a Horsburgh & Scott gear reducer and pinion stand with an 18.07:1 reduction ratio.

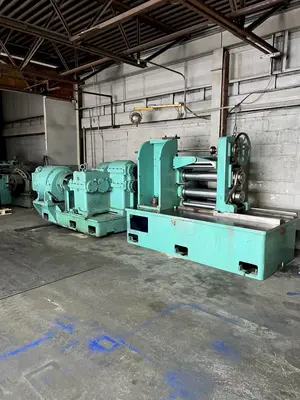

The slitter features an adjustable ring slitting assembly with four support rolls positioned at the top and bottom of both the entry and exit sides. These rolls allow positioning to support the material through the cut and strip it from the opposing knives. The adjustable arrangement allows vertical clearance and cut point to be set for the material being processed.
This used Ruesch precision ring slitter offers a platform for integration into coil-processing lines serving rolling mills, metal service centers, and specialty strip manufacturers.

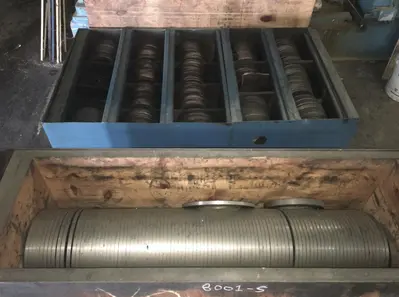

INCLUDED TOOLING
Approximately 96 Slitting Knives: Nominally 12" Diameter x 0.500" Wide
Approximately 194 Spacers: Assorted sizes
Tooling dimensions are approximate and may vary due to wear or previous regrinding.
CONDITION AND EQUIPMENT SCOPE
Offered in used, as-is condition. Electrical controls are not included. The drive shafts and universal joints required to connect the gearbox/pinion stand output shafts to the slitter head arbors are also not included.
SPECIFICATIONS AND APPLICATION NOTE

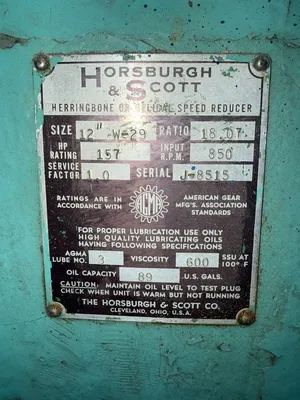

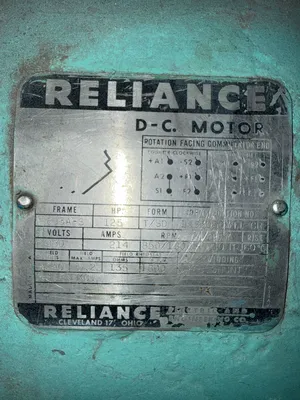

Dimensions, weights, and tooling sizes are approximate. Motor and reducer ratings are taken from their respective nameplates. The listed line speed of approximately 0–148 FPM is calculated using an 850 RPM input speed, an 18.07:1 reduction ratio, and nominal 12" diameter knives. Actual operating speed depends on knife diameter and the final drive and control configuration.
Material thickness capacity and achievable results depend on material properties, slit widths, number of cuts, tooling condition, and machine setup. All specifications, equipment condition, and included items are subject to verification prior to purchase.
Contact International Rolling Mills with your material specifications and slitting requirements to discuss this Ruesch Model 177 precision ring slitter.
RUESCH MODEL 177 6.5" X 24" PRECISION RING SLITTER WITH TOOLING
This Ruesch Model 177 precision ring slitter features approximately 6.5" diameter arbors, a 24" arbor width, and a 125 HP Reliance DC motor for industrial metal strip and coil slitting applications. Available from International Rolling Mills, the machine includes a separate drive assembly and an extensive assortment of slitting knives and spacers for configuring multiple strip widths.
Heavy machine housings and a substantial base provide rigid support for the slitting arbors. A sliding outboard bearing housing provides access to the arbor ends for knife and spacer changes. The separate drive assembly incorporates a Horsburgh & Scott gear reducer and pinion stand with an 18.07:1 reduction ratio.
The slitter features an adjustable ring slitting assembly with four support rolls positioned at the top and bottom of both the entry and exit sides. These rolls allow positioning to support the material through the cut and strip it from the opposing knives. The adjustable arrangement allows vertical clearance and cut point to be set for the material being processed.
This used Ruesch precision ring slitter offers a platform for integration into coil-processing lines serving rolling mills, metal service centers, and specialty strip manufacturers.
INCLUDED TOOLING
Approximately 96 Slitting Knives: Nominally 12" Diameter x 0.500" Wide
Approximately 194 Spacers: Assorted sizes
Tooling dimensions are approximate and may vary due to wear or previous regrinding.
CONDITION AND EQUIPMENT SCOPE
Offered in used, as-is condition. Electrical controls are not included. The drive shafts and universal joints required to connect the gearbox/pinion stand output shafts to the slitter head arbors are also not included.
SPECIFICATIONS AND APPLICATION NOTE
Dimensions, weights, and tooling sizes are approximate. Motor and reducer ratings are taken from their respective nameplates. The listed line speed of approximately 0–148 FPM is calculated using an 850 RPM input speed, an 18.07:1 reduction ratio, and nominal 12" diameter knives. Actual operating speed depends on knife diameter and the final drive and control configuration.
Material thickness capacity and achievable results depend on material properties, slit widths, number of cuts, tooling condition, and machine setup. All specifications, equipment condition, and included items are subject to verification prior to purchase.
Contact International Rolling Mills with your material specifications and slitting requirements to discuss this Ruesch Model 177 precision ring slitter.
Imperial
| Arbor Diameter | 6.5 |
| Arbor Width | 24 |
| Knife Diameter | Nominal 12" |
| Slitter Speed | Approximately 0–148 FPM (Based on 12" Dia Knives, 850 RPM Input, 18:07:1 Ratio) |
| Slitter Power | 125 HP DC Motor with Horsburgh & Scott 18.07:1 Ratio gear reducer and pinion stand |
| Slitter Voltage | 480 |
| Slitter Controls | No Electrical Controls Included |
| Slitter Dimensions | Approximately 19' L x 11' W x 7' H |
| Slitter Weight | Approximately 23,000 LBS |
